Lecture 02

A Brief History of Deep Learning

Reminders

• If you intend to scribe for a class lecture, only sign up once.
• All the recorded lectures are in Kaltura.
• HW1 is posted on the course website. It is due on September 19 via Canvas.
• Assignment: Implement a perceptron in Python (basic one-layer neural network).

---

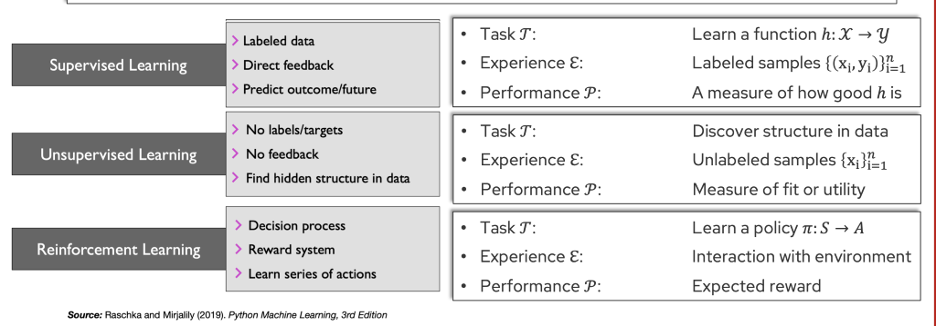

Recap

Formally, a computer program is said to learn from experience $ℇ$ with respect to some task $𝒯$ and performance measure $𝒫$ if its performance at $𝒯$ as measured by $𝒫$ improves with $ℇ$.

---

Structured data

• Stacking feature vectors will result in a feature matrix.
• $n$ indexes = number of samples.
• $m$ indexes = number of features.

  Unstructured data

• Images (full of pixels that are not labeled).
• Convolutional Neural Networks:
  • 1st entry = number of samples.
  • 2nd entry = number of channels (1 = grayscale, 3 = color).
  • 3rd and 4th = height and width.
  • NCHW representation.

---

Machine Learning Jargon

• Training a model = fitting a model = parameterizing a model = learning from data.
• Training example = record, instance, sample.
• Feature = observation, predictor, variable, independent variable, input, attribute, covariate.
• Target = outcome, ground truth, output, response variable, dependent variable, label.
• Output/Prediction = model’s estimate of the target.

---

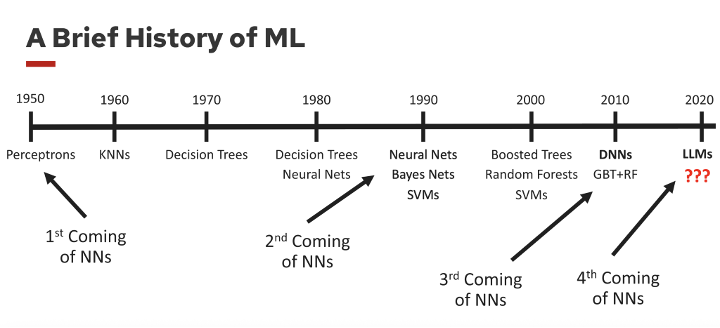

History of Machine Learning

• Perceptrons: Simple, one-layer network (early optimism).
• KNN: With unlimited data, ML systems approach k-nearest neighbors. Key = lookup of most similar sample.
• Decision tree: Deterministic, interpretable models.
• Neural networks: Comeback after skepticism; concern was too many parameters vs. samples.
• AI Winter (1990s–2000s): Neural nets didn’t perform well, but research continued.
• Deep neural networks: Hardware + large datasets allowed training of large models → accuracy improved.
• Overparameterized models: Inductive biases guide solutions even without classical guarantees.

---

Artificial Neurons and Perceptrons

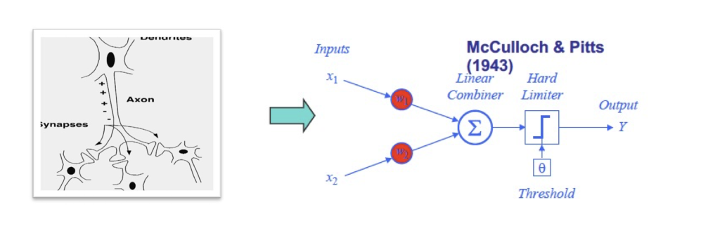

• Neural model first discussed in 1943 (McCulloch & Pitts).



  • Mimicked neuroscience behaviors.
  • Inputs with weights (+1, –1) + threshold.
  • Excitatory vs inhibitory signals.

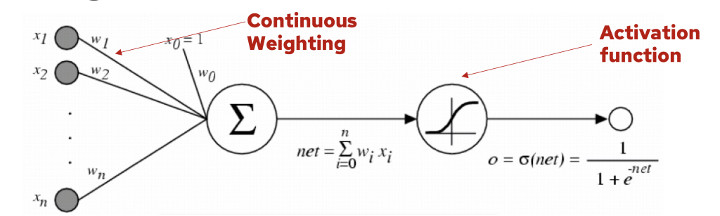

• Perceptrons:



  • Horizontal = input, vertical = output.
  • Apply activation functions (tanh, sigmoid).
  • Consider regression problem $f: X \rightarrow Y$ for scalar $Y$
  • Let $Y \sim \mathcal{N}(f(x), \Sigma^2)$
  • Then $\arg\max_{w} \log \prod_i P(y_i \mid x_i; w) = \arg\min_{w} \sum_i \tfrac{1}{2}(y_i - f(x_i; w))^2$
    • We can find $\arg\max_{w} \log \prod_i P(y_i \mid x_i; w)$ by iterating: \(w_d = w_d + \eta \sum_i (y_i - o_i) \, o_i (1 - o_i) \, x^i_d\)
• Residual = $(y_i - o_i)$.
  • Function maximized when $o=0.5$: $o_i(1-o_i)$.
  • Residual + uncertainty $\to$ larger update with respect to $x$.
• Can a Perceptron represent XOR?
• Answer: No.
• If there were, then there would be constants $w_1$ and $w_2$ such that:
  • When $x_1 = x_2$, then $\sigma(w_1 x_1 + w_2 x_2) < \theta$
  • When $x_1 \neq x_2$, then $\sigma(w_1 x_1 + w_2 x_2) \geq \theta$
• Case 1: $x_1 = 1, x_2 = 0$
  • Eq. (1): $\sigma(w_1) \geq \theta$
• Case 2: $x_1 = 0, x_2 = 1$
  • Eq. (2): $\sigma(w_2) \geq \theta$
• Case 3: $x_1 = 1, x_2 = 1$
  • Eq. (3): $\sigma(w_1 + w_2) < \theta$
• Contradiction: Eq. (1) + Eq. (2) contradicts Eq. (3).

---

Backpropagation

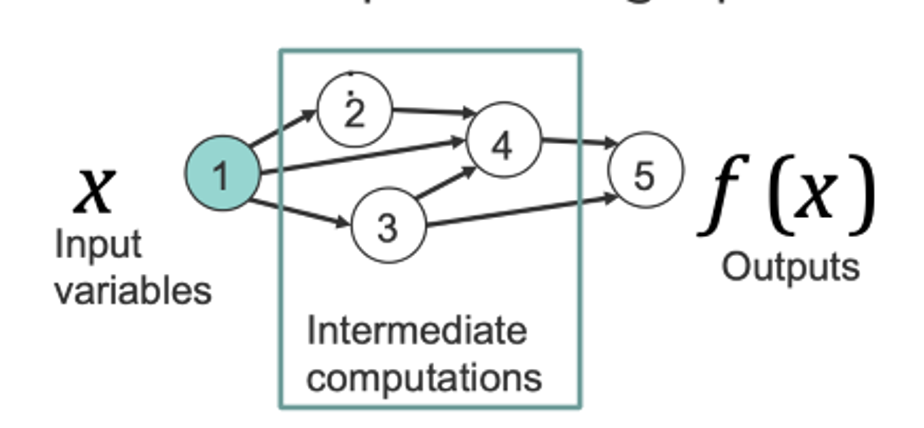

Neural networks as computation graphs

• Neural networks are function compositions that can be represented as computation graphs:

• By applying the chain rule, and working in reverse order, we get:

\[\frac{\partial f_n}{\partial x} = \sum_{i_1 \in \pi(n)} \frac{\partial f_n}{\partial f_{i_1}} \frac{\partial f_{i_1}}{\partial x} = \sum_{i_1 \in \pi(n)} \frac{\partial f_n}{\partial f_{i_1}} \sum_{i_2 \in \pi(i_1)} \frac{\partial f_{i_1}}{\partial f_{i_2}} \frac{\partial f_{i_2}}{\partial x} = \dots\]

• Invented by several groups.
• Formalized by Rumelhart, Hinton, and Williams (1986).

• Sparked a new AI wave.

About the term “Deep Learning”

“Representation learning is a set of methods that allows a machine to be fed with raw data and to automatically discover the representations needed for detection or classification. Deep learning methods are representation-learning methods with multiple levels of representation […]” — LeCun, Bengio, & Hinton (2015)

---

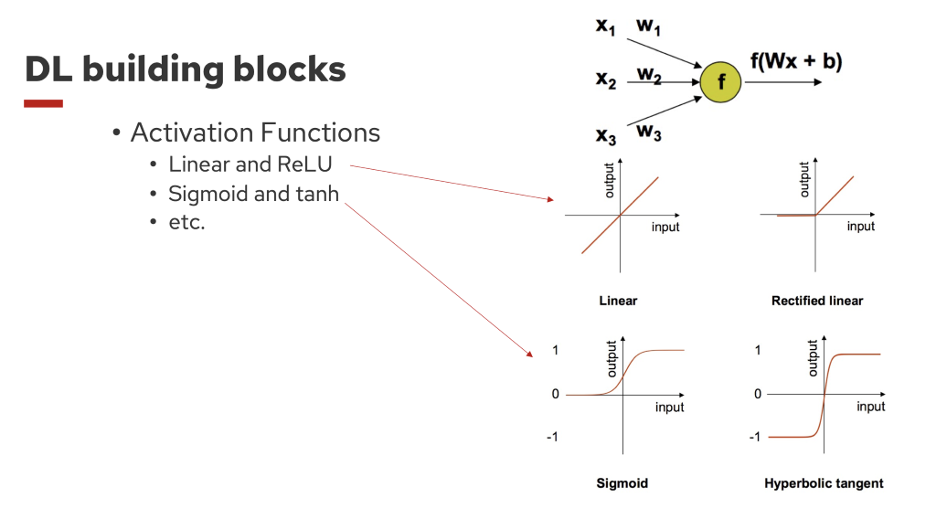

Activation Functions

• If all layers are linear → the model is still linear.
• ReLU (Rectified Linear Unit): most common.
• Sigmoid: bounded between 0 and 1, interpretable as probability.

---

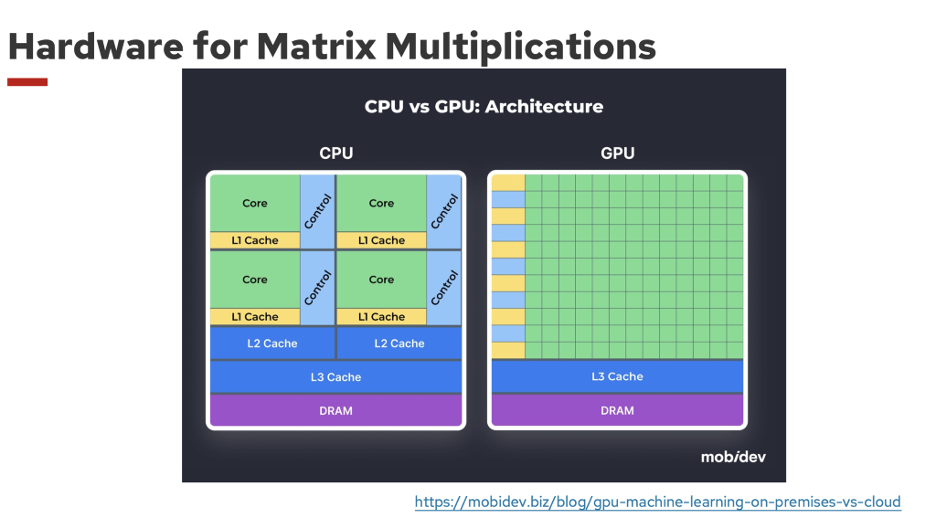

Hardware

• CPU:
  • Cache is local memory.
  • Control is centralized, instructions pass through the core.
• GPU:
  • Optimized for matrix multiplication.
  • Cores share cache + control.
  • Fast parallel computation, optimized for one path.
  • Data transfer at high speed.

---

Large-Scale Unsupervised Learning

From GPT-1 (2018) to GPT-4:

• Architecture / Scale:
  • Parameters: 1.5B → >1T
  • Layers: 12 → >96
  • Attention heads: 12 → >96
  • Embedding dimension: 768 → >12,288
  • Context length: 512 → 128k
  • Vocabulary: 40k → >50k tokens
• Tokenizer: Multimodal (includes image patches).
• Mixture-of-Experts architecture.
• Training data: 5GB (BookCorpus) → ~50TB (13T tokens).
• Reinforcement Learning for alignment.

---

Open Directions

• Verifiable rewards (code/math correctness).
• Vision-language multimodal models.
• Large-scale reinforcement learning.
• Model uncertainty and hallucinations.
• Model editing and interpretability.
• Model synthesis and communication.
